With the concept of Advanced Acoustics – “Reimagining Acoustic Experience” in mind, we carefully designed the new body shape of the Advanced Auditorium, drawing on our research into the general Auditorium body shape. After many rounds of prototyping, the Advanced Auditorium body has a slightly wider waist, which has been moved slightly towards the neck. Thanks to these changes, this shape delivers a richer low mids and better body to weight balance, which conventional Auditorium bodies tend to lack.
Model: AAM300CE-NT
SPECIFICATIONS
| Body Shape |
Advanced Auditorium with Advanced Access Cutaway body |
| Bracing |
X-M Bracing |
| Top |
Solid Sitka Spruce top |
| back & sides |
African Mahogany back & African Mahogany sides |
| Neck |
Low Oval Grip with Rounded Fretboard EdgeThermo Aged™ African Mahogany neck |
| Fretboard |
Rosewood fretboard |
| Bridge |
Rosewood scalloped bridge |
| body binding |
Rounded body edge binding |
| inlay |
White dot inlay |
| soundhole rosette |
Abalone and Wooden rosette with Soundhole binding |
| tuning machine |
Chrome Die-cast tuners (18:1 gear ratio) |
| nut material |
Bone |
| number of frets |
20 |
| number of frets |
20 |
| saddle material |
Compensated Bone |
| bridge pins |
Ibanez Advantage™ |
| strings |
D'Addario® XTAPB1253 |
| string gauge |
.012/.016/.024/.032/.042/.053 |
| string space |
11mm |
| factory tuning |
1E,2B,3G,4D,5A,6E |
| pickup |
Ibanez T-bar Undersaddle |

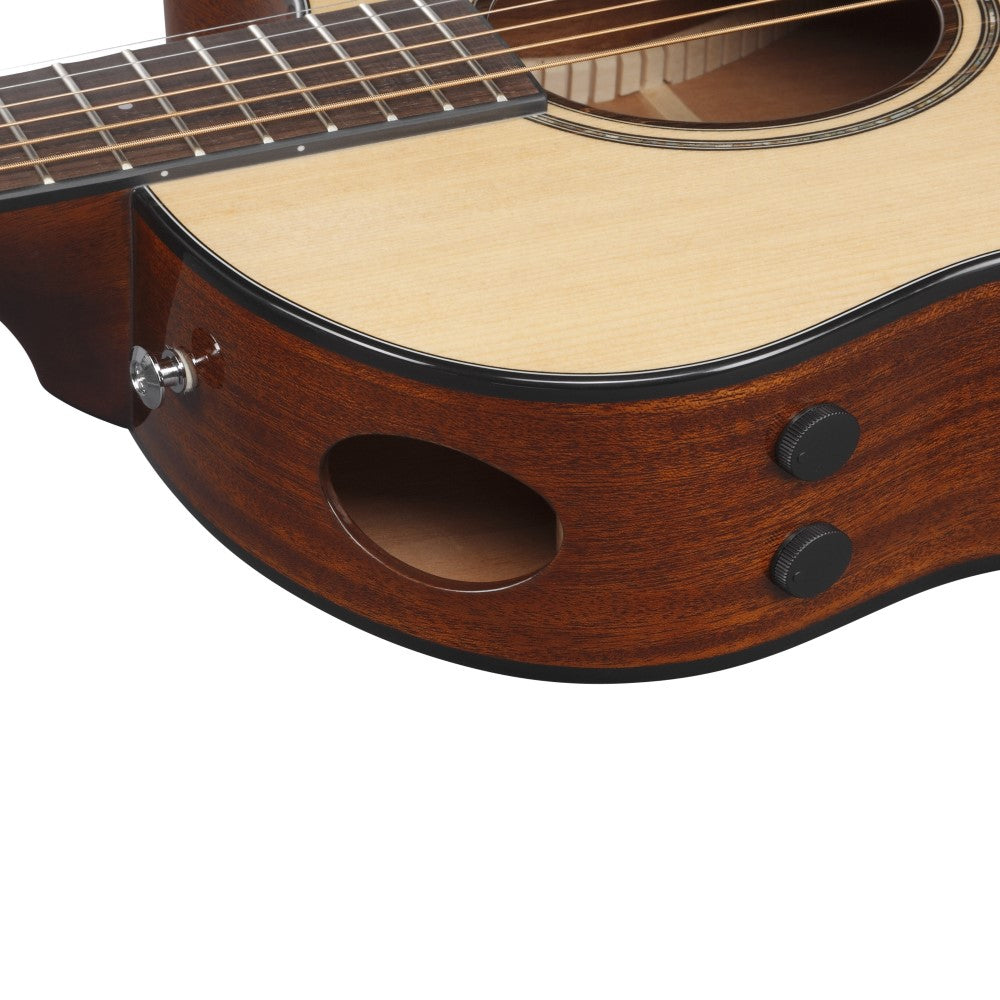

| preamp |
Ibanez Custom Electronics w/Volume and Tone Control |

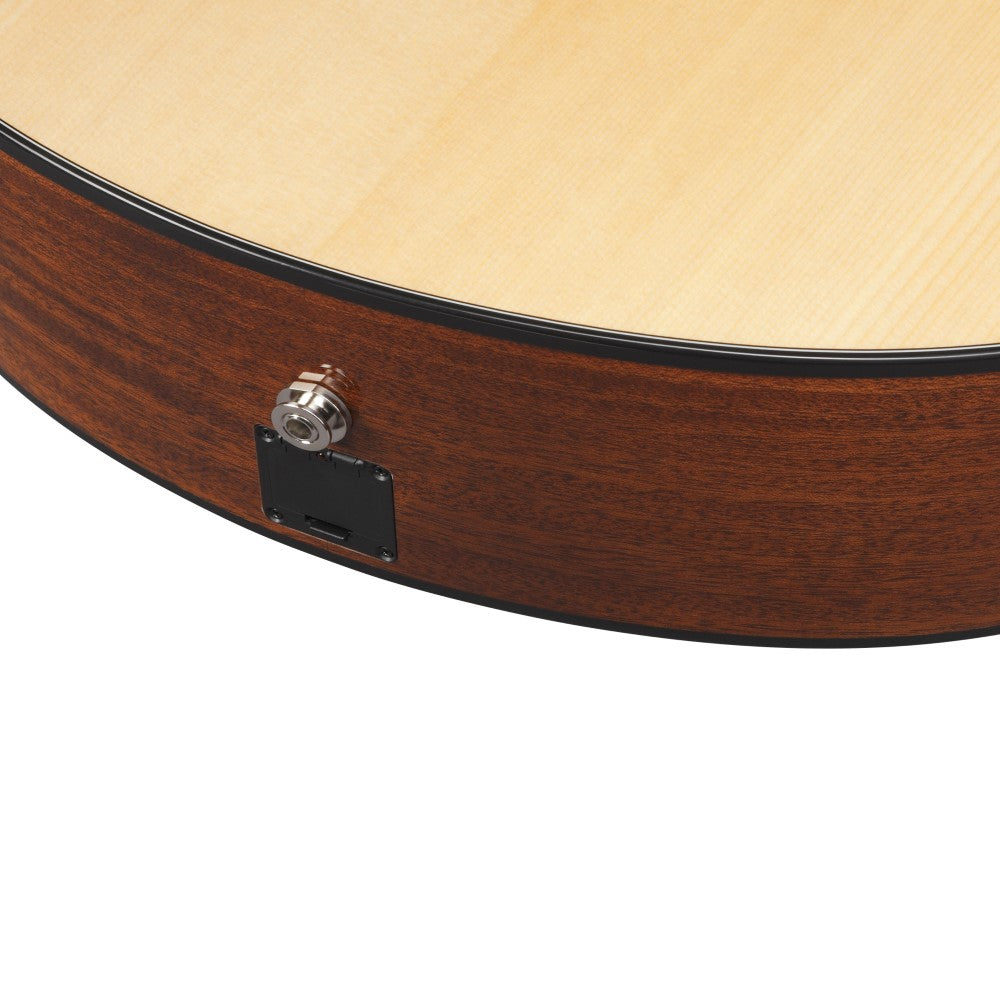

| output jack |
1/4" Endpin Jack |
