With the concept of Advanced Acoustics – “Reimagining Acoustic Experience” in mind, we carefully designed the new body shape of the Advanced Auditorium, drawing on our research into the general Auditorium body shape. After many rounds of prototyping, the Advanced Auditorium body has a slightly wider waist, which has been moved slightly towards the neck. Thanks to these changes, this shape delivers a richer low mids and better body to weight balance, which conventional Auditorium bodies tend to lack.

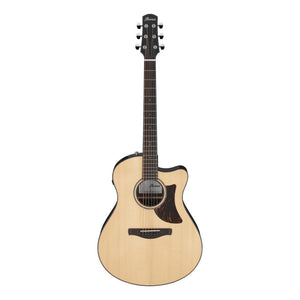

Model: AAM380CE-NT
SPECIFICATIONS
| Body Shape |
Advanced Auditorium with Advanced Access Cutaway body |
| Bracing |
X-M Bracing |
| Top |
Solid Sitka Spruce top |

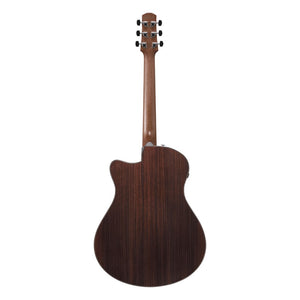

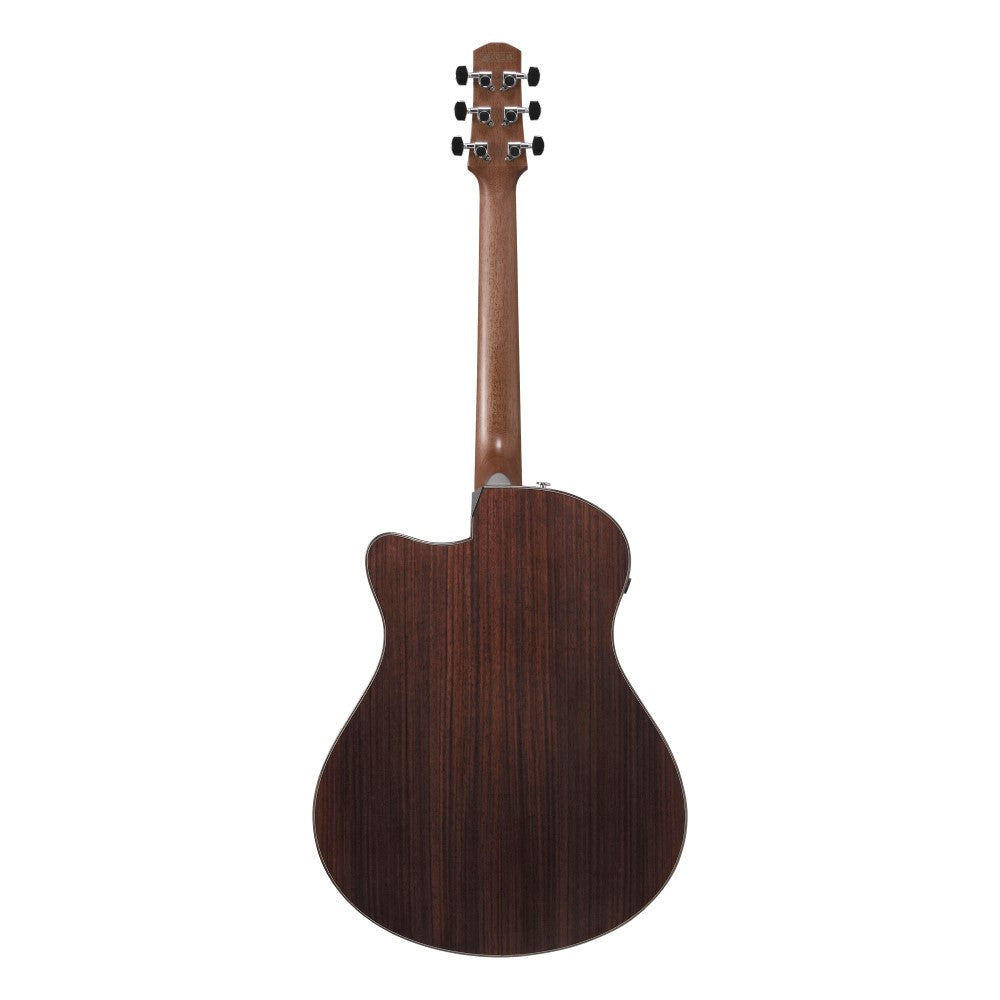

| back & sides |
Rosewood back & Rosewood sides |
| Neck |
Low Oval Grip with Rounded Fretboard EdgeThermo Aged™ African Mahogany neck |
| Fretboard |
Macassar Ebony fretboard |
| Bridge |
Macassar Ebony scalloped bridge |
| body binding |
Rosewood body binding with rounded body edge |
| top board purfling |
Wooden |
| inlay |
Maple dot inlay |
| soundhole rosette |
Abalone and Wooden rosette with Soundhole binding |
| tuning machine |
Chrome Die-cast tuners (18:1 gear ratio) |
| nut material |
Bone |
| number of frets |
20 |
| saddle material |
Compensated Bone |
| bridge pins |
Ibanez Advantage™ |
| strings |
D'Addario® XTAPB1253 |
| Factory Tuning |
1E,2B,3G,4D,5A,6E |
| string gauge |
.012/.016/.024/.032/.042/.053 |
| string space |
11mm |
| factory tuning |
1E,2B,3G,4D,5A,6E |
| pickup |
Ibanez T-bar Undersaddle & Contact |
| preamp |

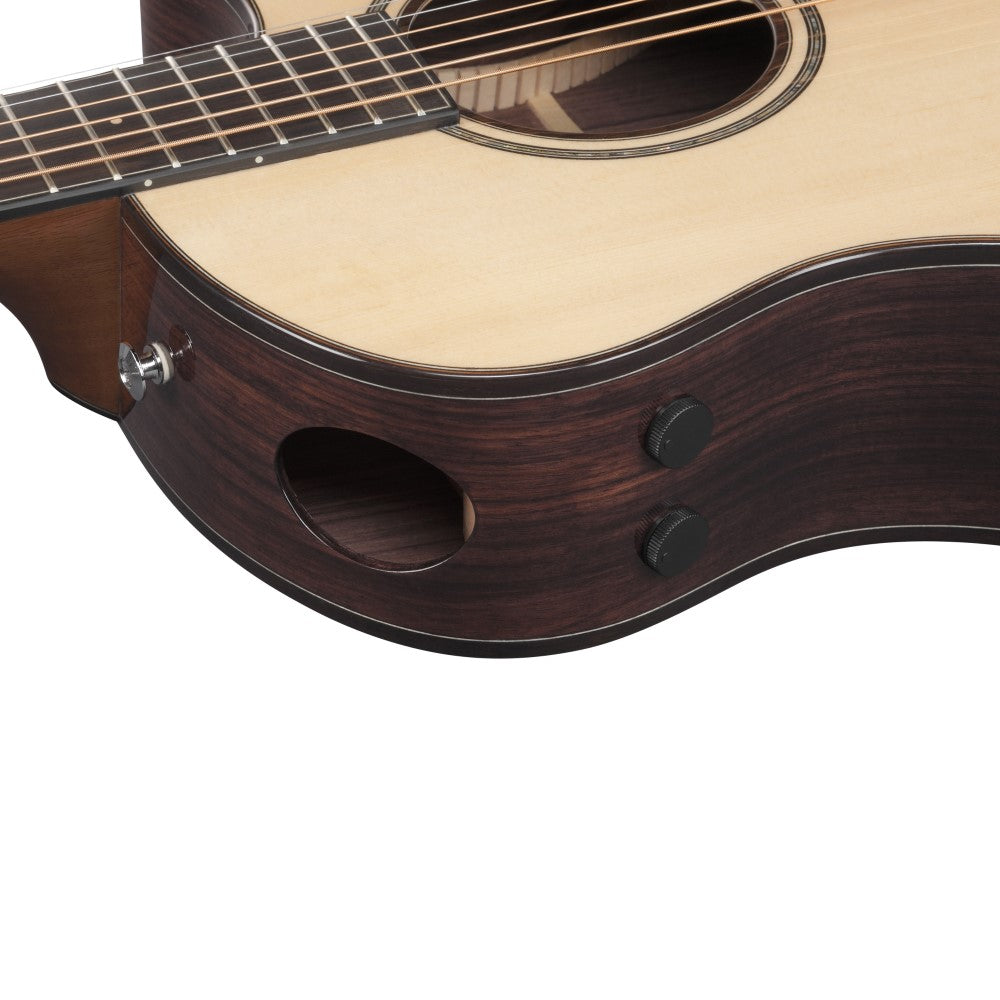

Ibanez Custom Electronics w/Undersaddle Pickup Volume and Contact Pickup Volume |

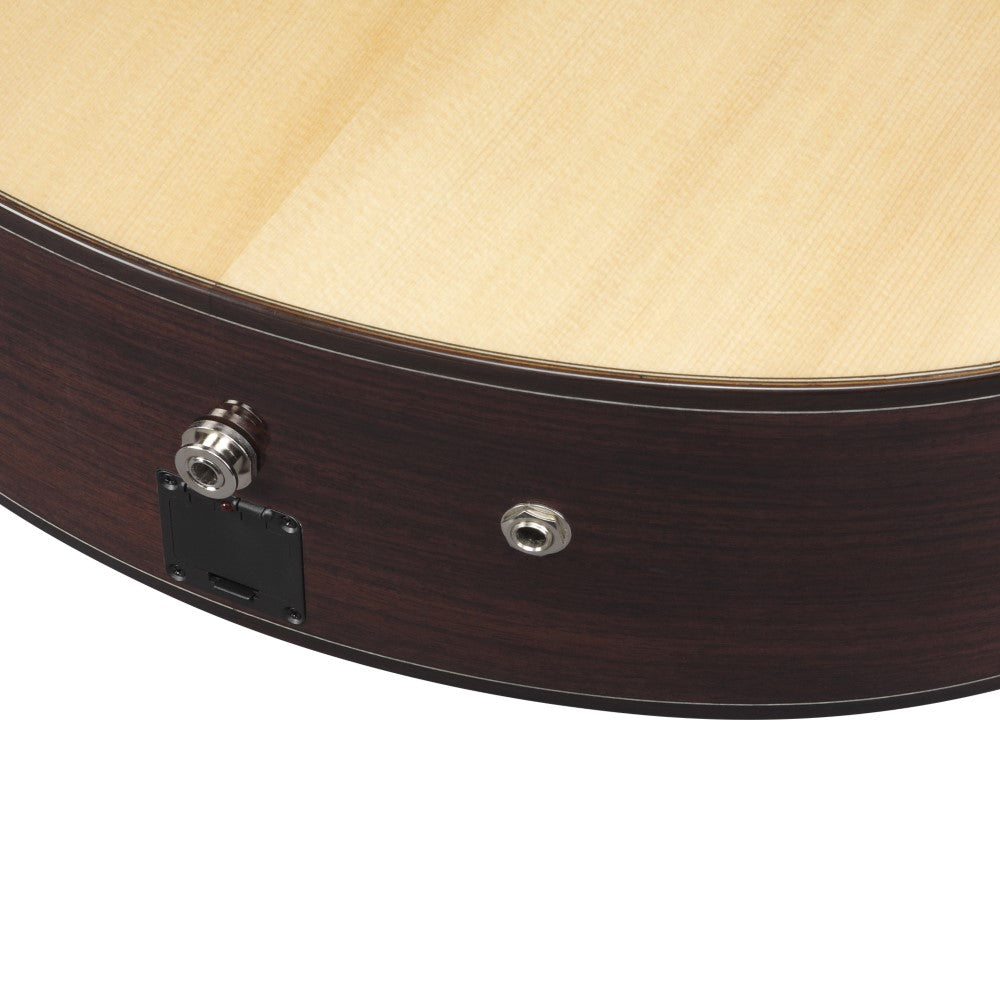

| output jack |
Dual Outputs (Mono Out / Stereo Out) |
