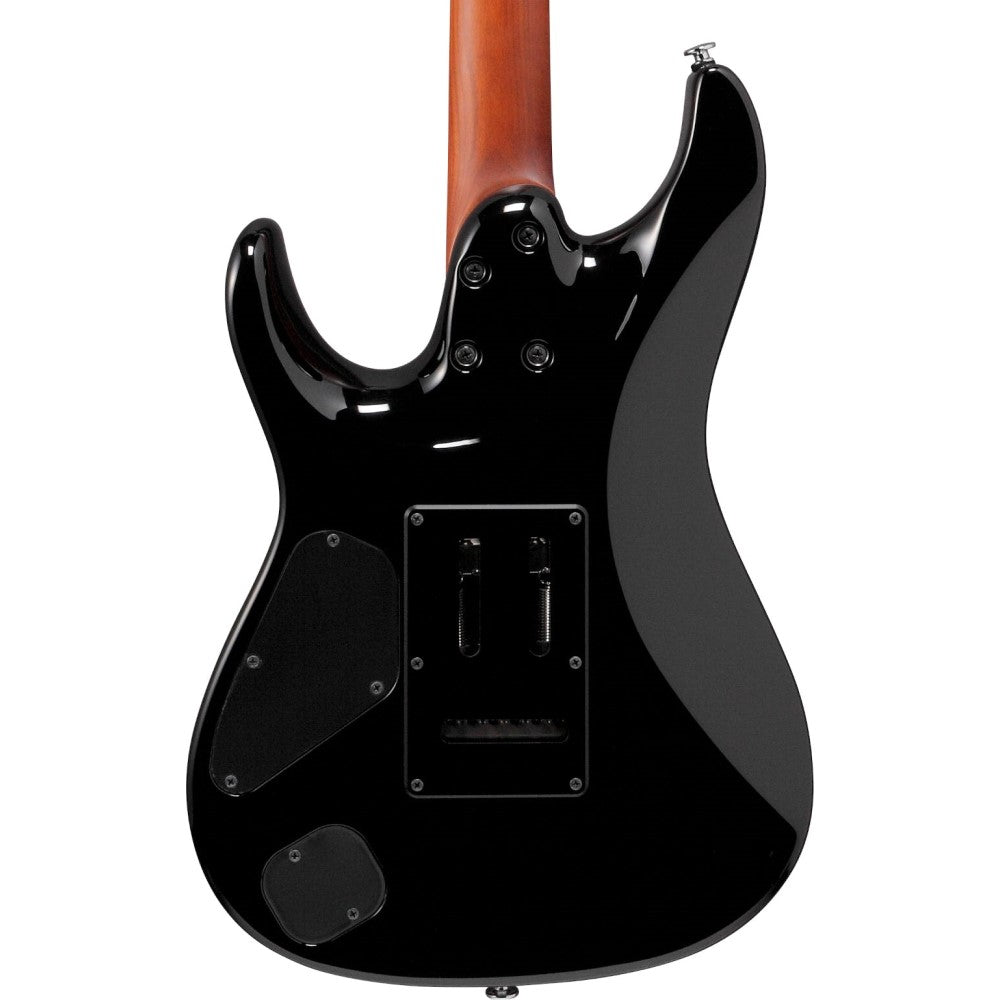

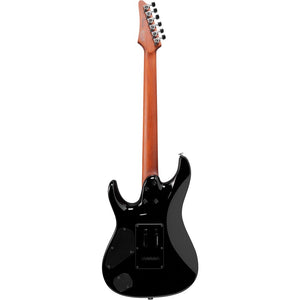

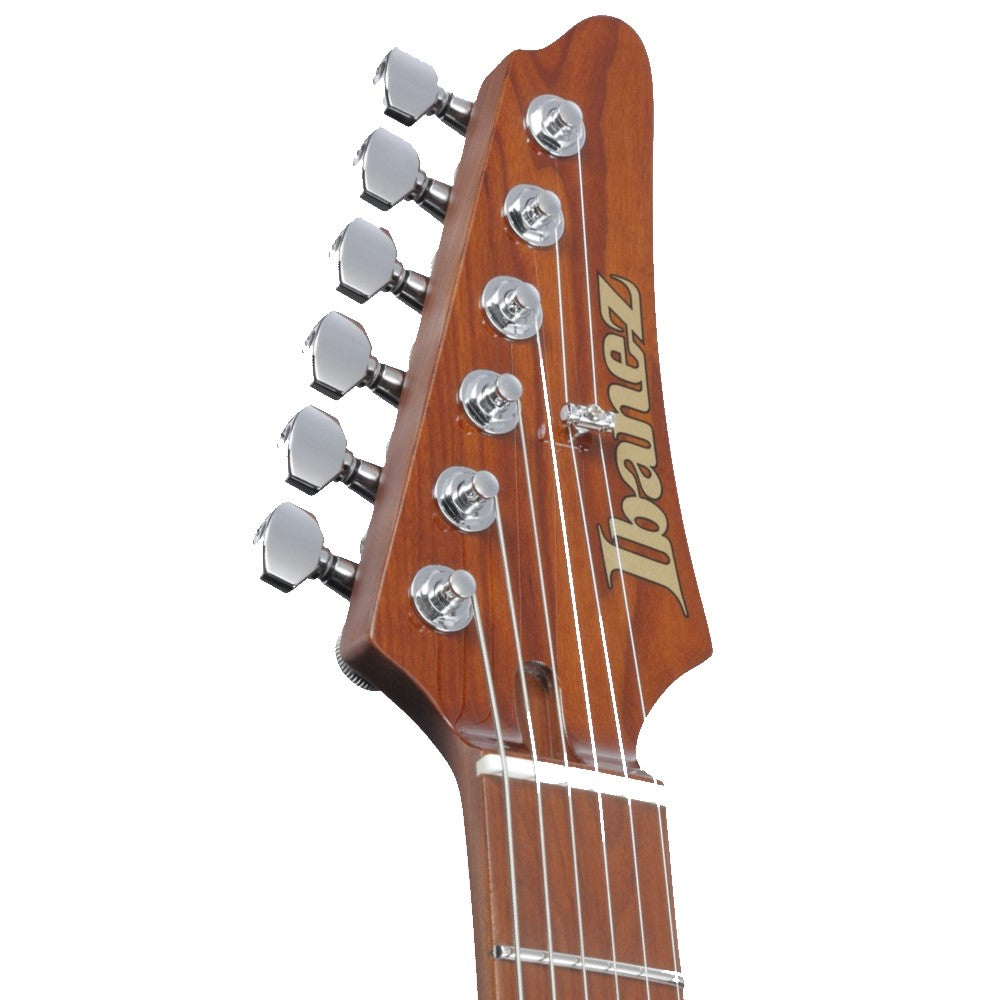

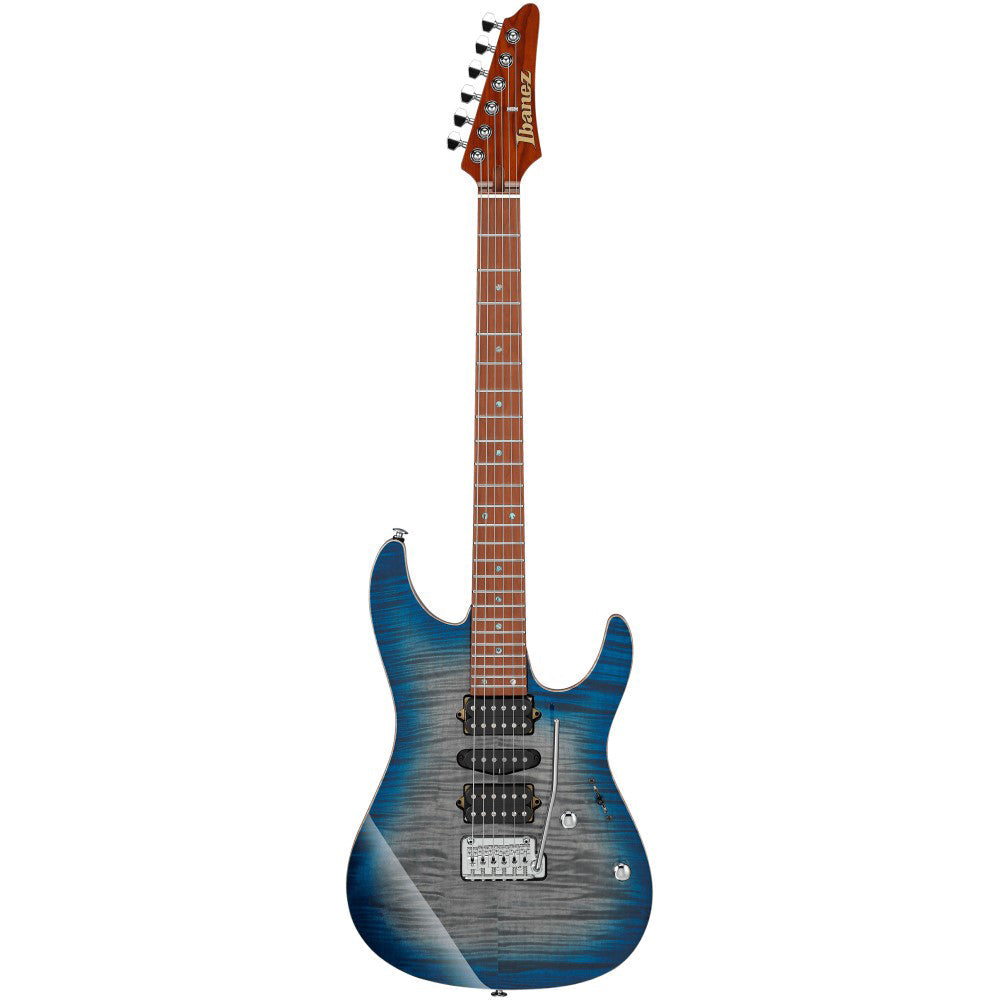

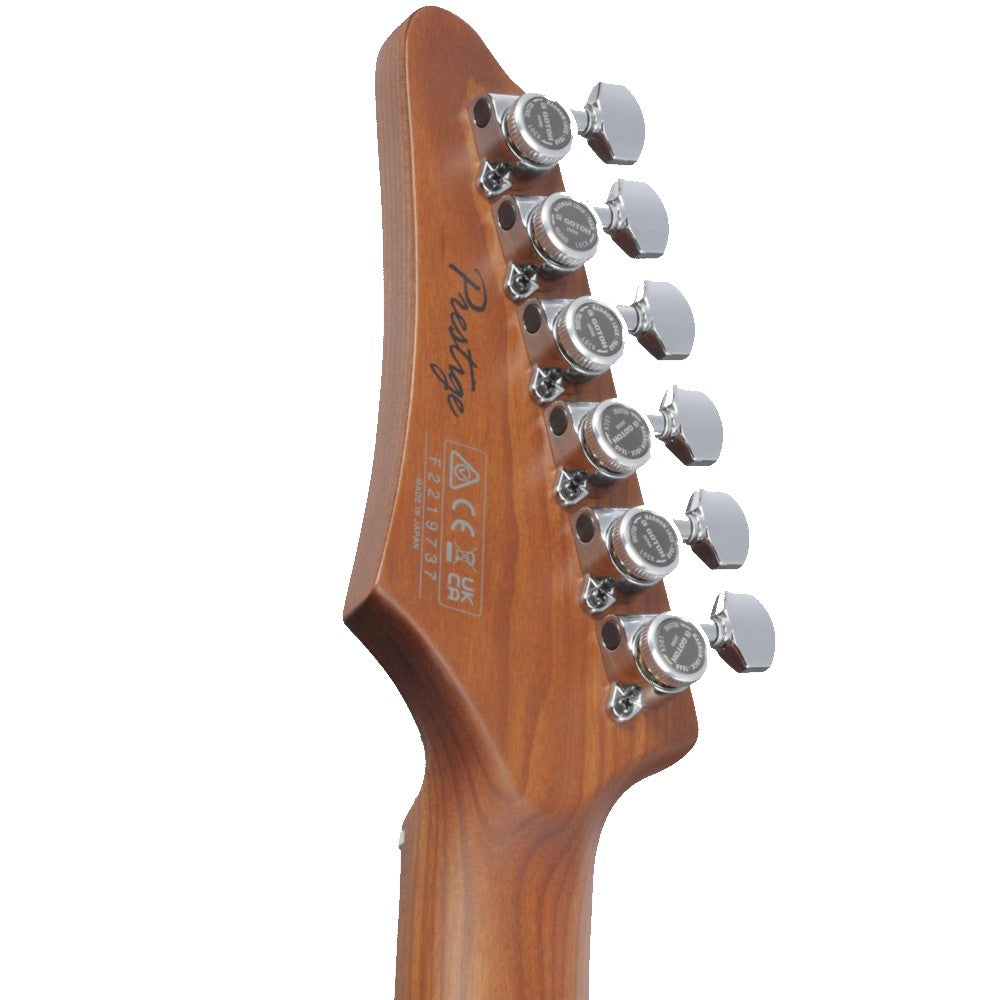

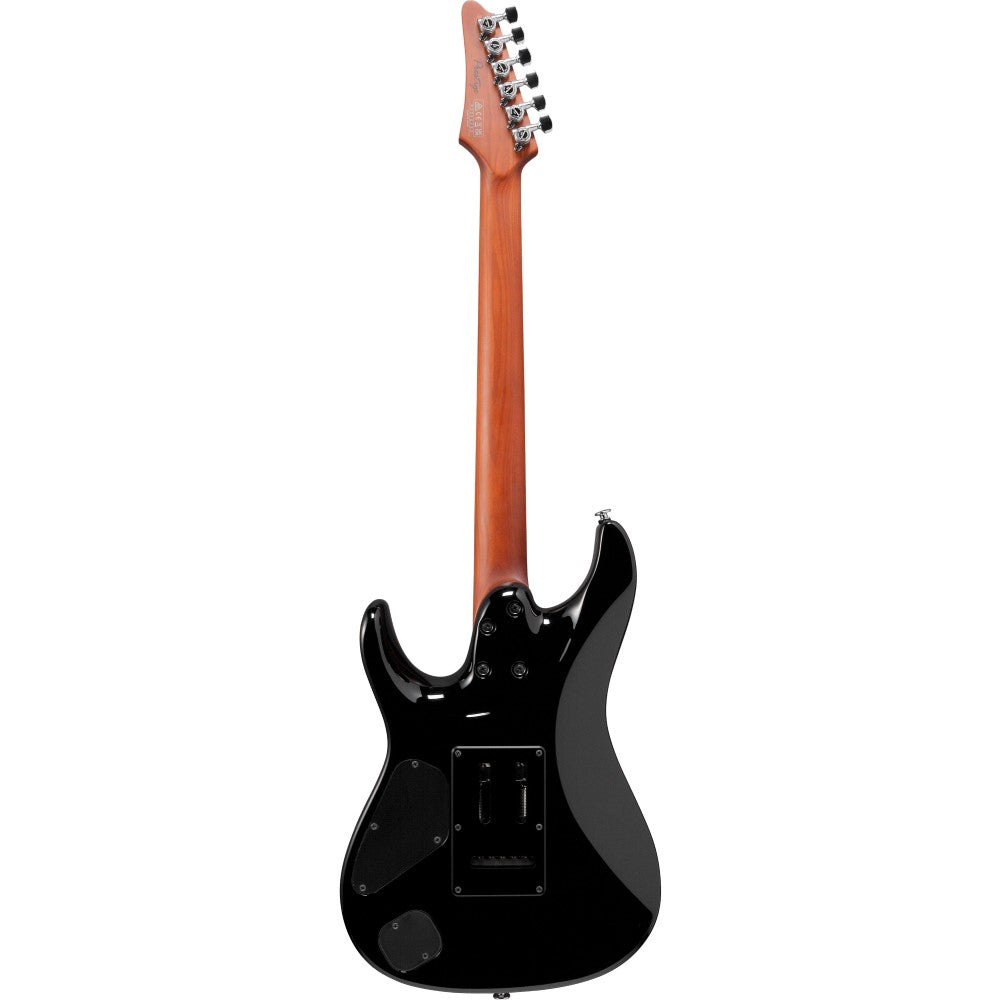

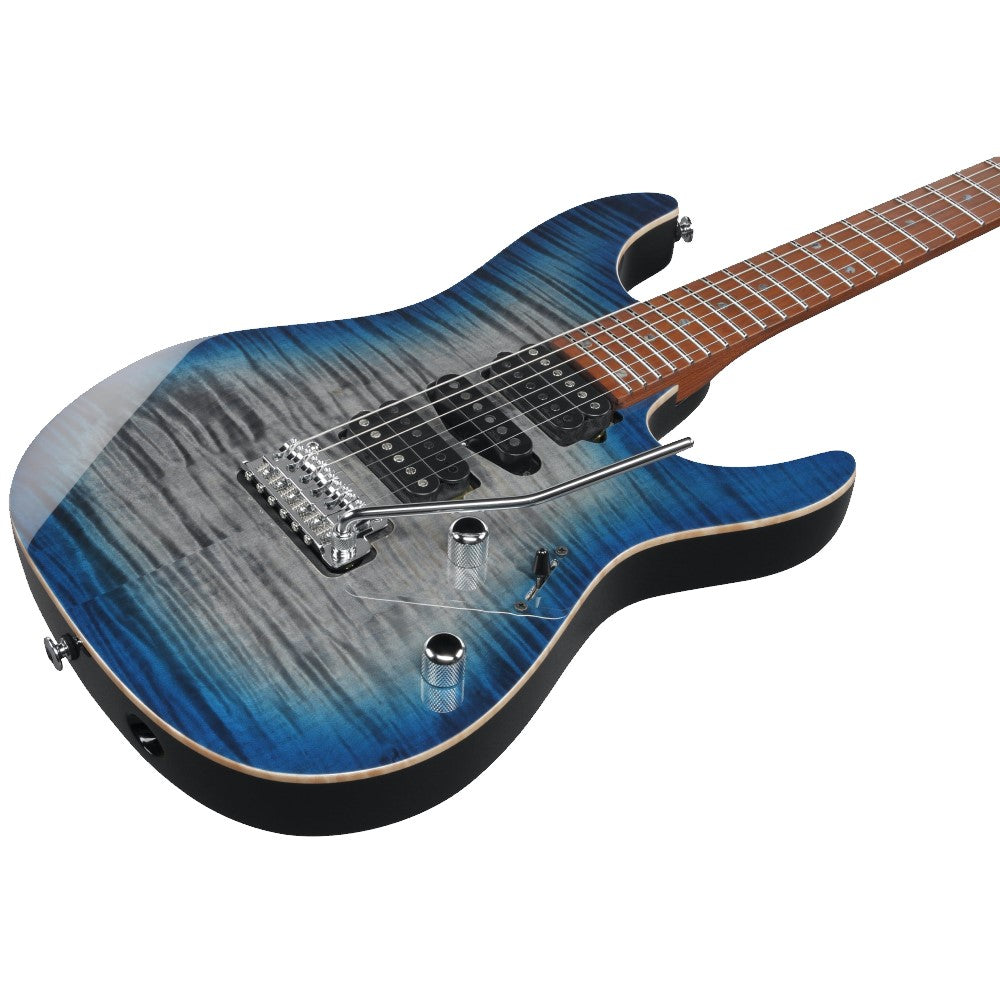

The AZ2407F features a 4mm thick flamed maple top on a basswood body bolted to an S-Tech roasted maple oval C shaped neck with an S-Tech roasted maple fingerboard with 24 stainless steel frets, abalone dot position markers and luminescent side dots. Components include DiMarzio pickups with Air Norton and The Tone Zone humbuckers flanking a True Velvet single-coil, a Gotoh T1502S two-point synchronized tremolo bridge with steel saddles, an oil-impregnated bone nut, an angled output jack and Gotoh locking tuning machines.
Model: AZ2407F-SDE
SPECIFICATIONS
| neck type |
AZ Oval CS-TECH WOOD Roasted Maple neck |
| top/back/body |
Flamed Maple (4mm) top Basswood body |
| fretboard |
S-TECH WOOD Roasted Maple fretboard Abalone dot inlay |
| fret |
Jumbo Stainless Steel frets Prestige fret edge treatment |
| number of frets |
24 |
| bridge |
Gotoh® T1502S bridge |
| string space |
10.5mm |
| neck pickup |
DiMarzio® Air Norton™ (H) neck pickup Passive/Alnico |
| middle pickup |
DiMarzio® True Velvet™ (S) middle pickup Passive/Alnico |
| bridge pickup |
DiMarzio® The Tone Zone® (H) bridge pickup Passive/Alnico |
| factory tuning |
1E,2B,3G,4D,5A,6E |
| strings |
D'Addario® EXL110 |
| string gauge |
.010/.013/.017/.026/.036/.046 |
| nut |
Bone nut |
| hardware color |
Chrome |
