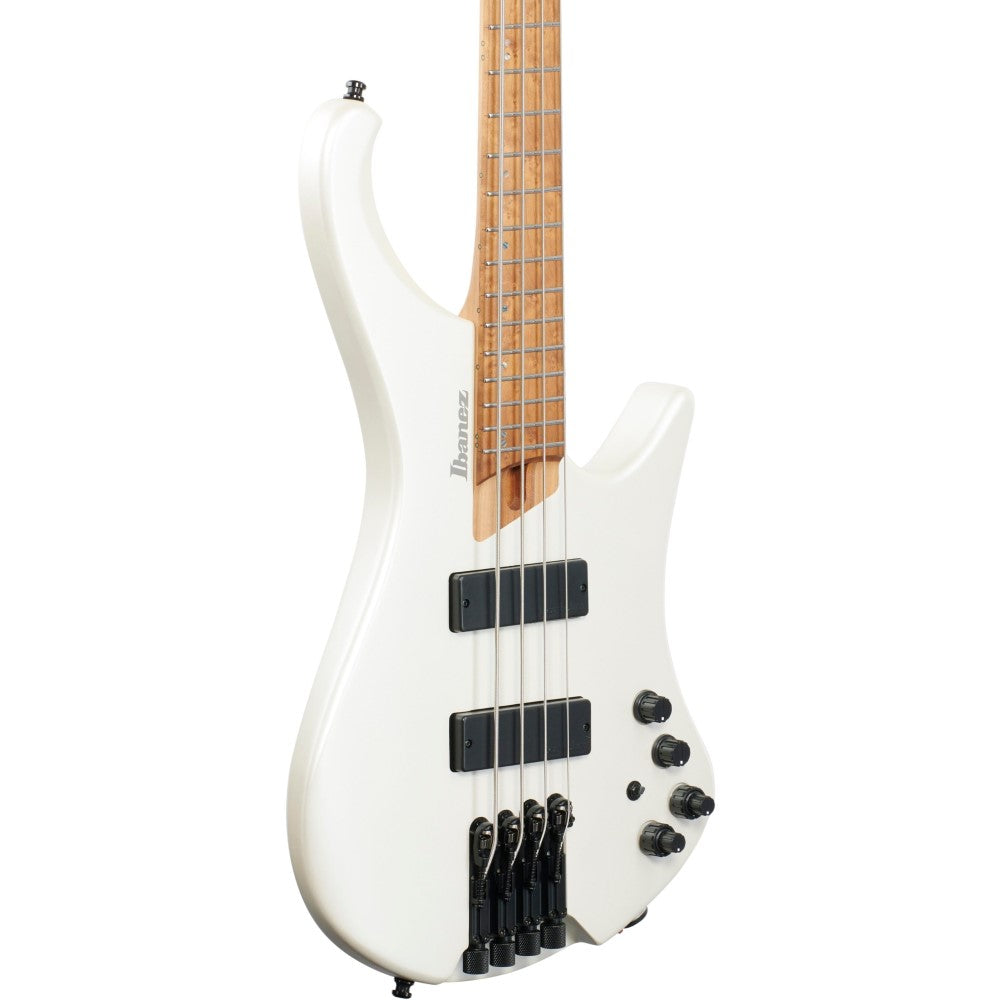

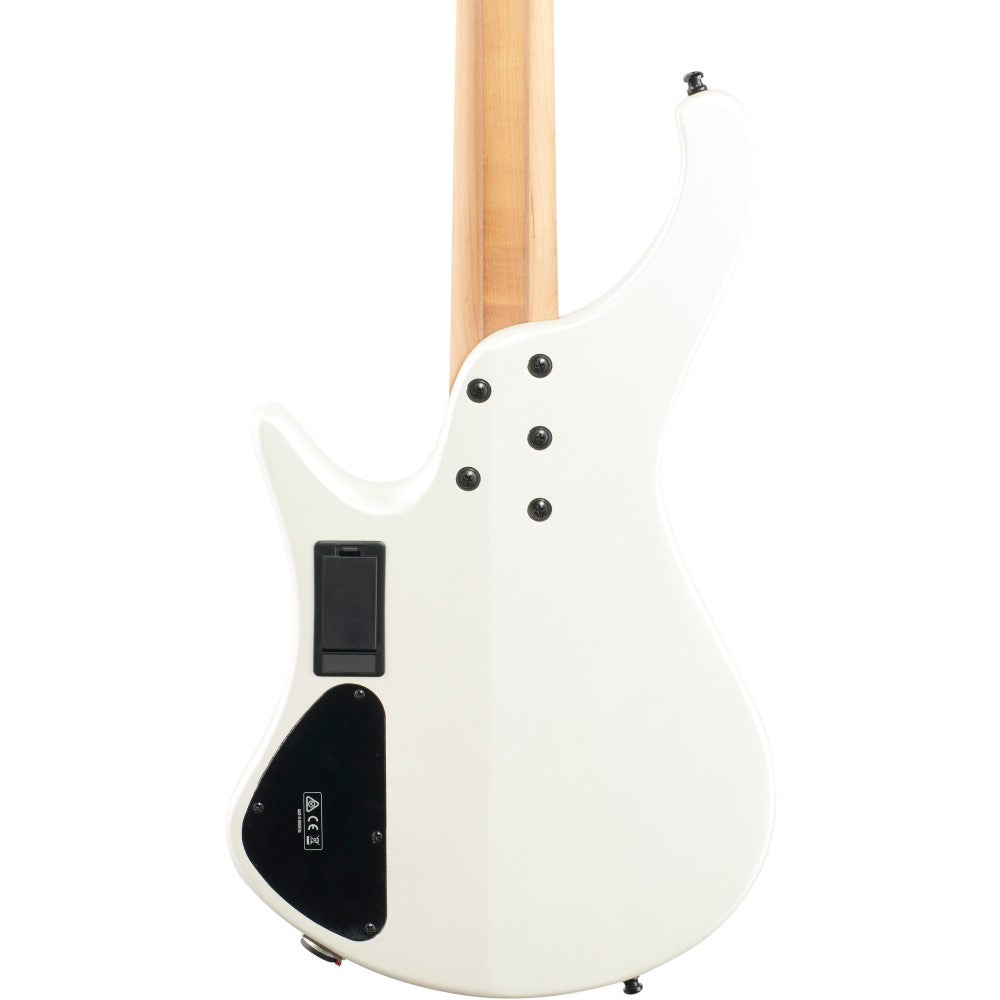

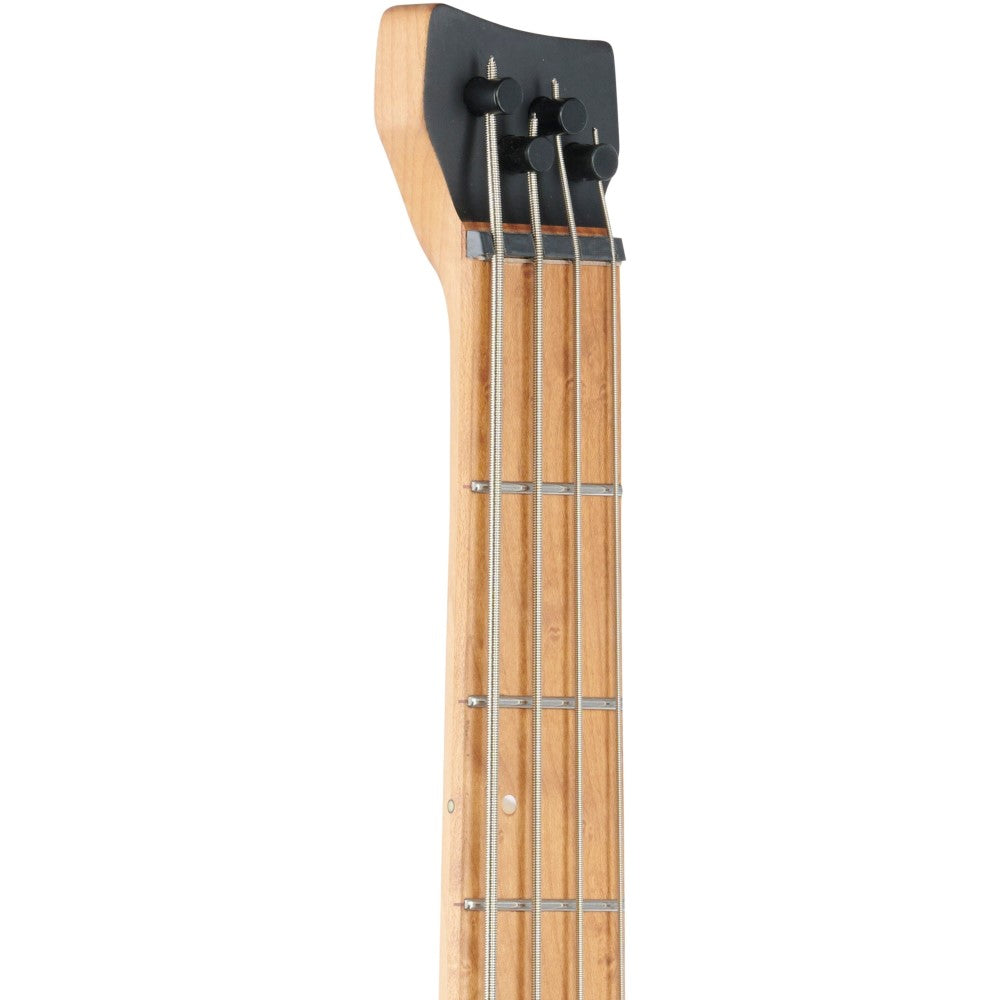

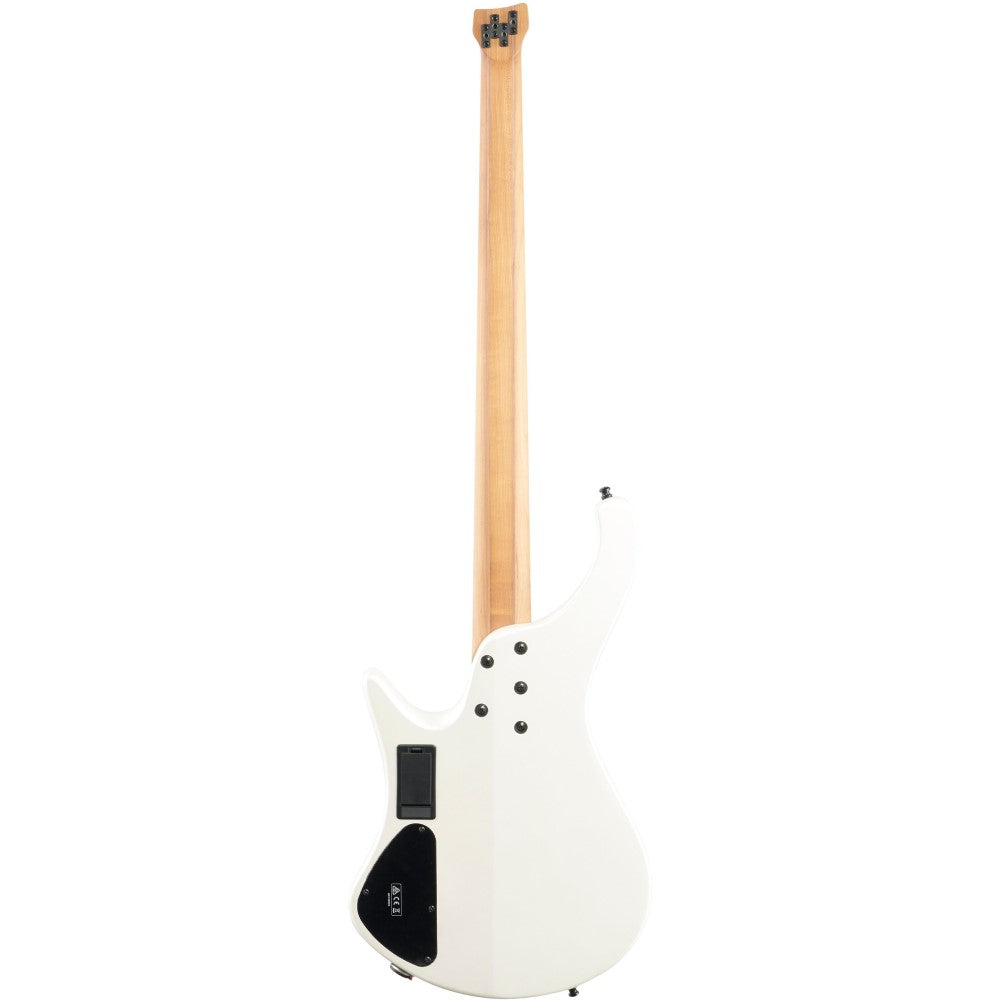

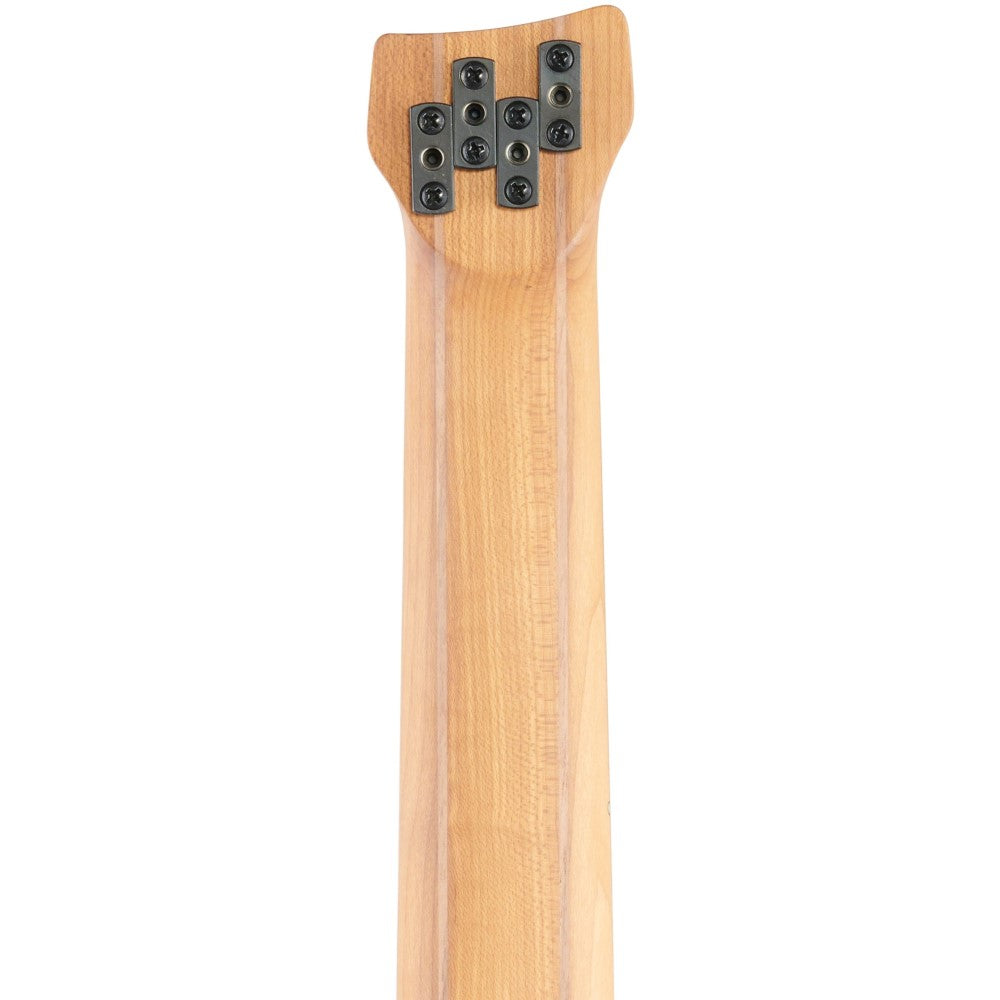

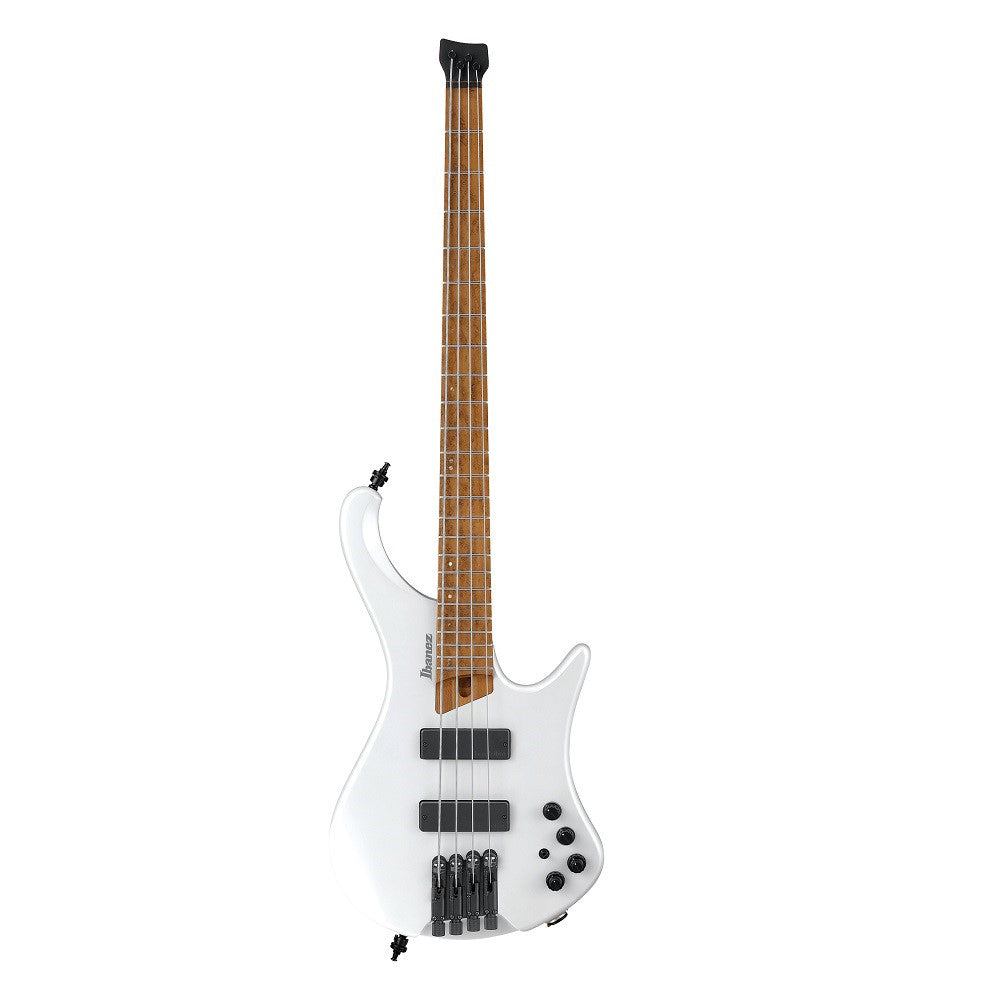

The EHB1000 features a headless design with a chambered American basswood body bolted to a graphite reinforced roasted maple and walnut neck with a roasted birdseye maple fingerboard with 24 stainless steel frets, offset abalone dot position markers and luminescent side dots. Components include individual Monorail V HS bridges with adjustable string spacing, a pair of Bartolini BH2 passive pickups, a detachable finger ramp, a Vari-mid 3-band EQ with EQ bypass switch, a locking Neutrik output jack and Schaller S-Lock strap pins.
Model: EHB1000-PWM
SPECIFICATIONS
| neck type |
EHB4/5pc Roasted Maple/Walnut neck w/Graphite reinforcement rods |
| top/back/body |
American Basswood body |
| fretboard |
Roasted Birdseye Maple fretboard/Abalone off-set dot inlay |
| fret |
Medium Stainless Steel frets |
| number of frets |
24 |
| bridge |
MR5HS bridge |
| string space |
19mm |
| neck pickup |
Bartolini® BH2 neck pickup Passive |
| bridge pickup |
Bartolini® BH2 bridge pickup Passive |
| equaliser |
Vari-mid 3-band EQ w/ EQ bypass switch passive tone control on treble pot |
| factory tuning |
1G,2D,3A,4E |
| strings |
D'Addario® EXL165 |
| string gauge |
.045/.065/.085/.105 |
| hardware color |
Black |
