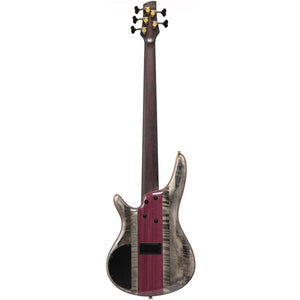

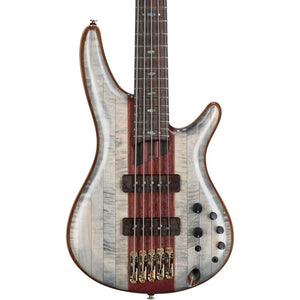

The SR5CMDX features a curly maple, purpleheart and walnut top and back on a double-cutaway ash body bolted to a titanium reinforced panga panga and purpleheart Atlas neck with a 24-fret panga panga fingerboard with abalone oval position markers. Components include a pair of Nordstrand Big Single passive pickups with an Ibanez custom preamp with a three-band EQ, Mono-rail bridges with 19mm string spacing, a GraphTech Black TUSQ nut and Gotoh tuning machines.
Model: SR5CMDX-BIL
SPECIFICATIONS
| neck type |
Atlas-5/5pc Panga Panga/Purpleheart neck w/KTS™ TITANIUM rods |
| top/back/body |
Curly Maple/Purpuleheart/Walnut topCurly Maple/Purpuleheart/Walnut backAsh body |
| fretboard |
Bound Panga Panga fretboard/Abalone oval inlay |
| fret |
Medium frets/Premium fret edge treatment |
| number of frets |
24 |
| bridge |
MR5S bridge |
| string space |
16.5mm |
| neck pickup |
Nordstrand™ Big Single wood covered neck pickup Passive |
| bridge pickup |
Nordstrand™ Big Single wood covered bridge pickup Passive |
| equaliser |
Ibanez Custom Electronics 3-band EQ w/ EQ bypass switch (passive tone control on treble pot) & 3-way Mid frequency switch |
| factory tuning |
1G,2D,3A,4E,5B |
| strings |
D'Addario® EXL165 + .130 |
| string gauge |
.045/.065/.085/.105/.130 |
| nut |
Graph Tech® BLACK TUSQ XL® nut |
| hardware color |
Gold |
