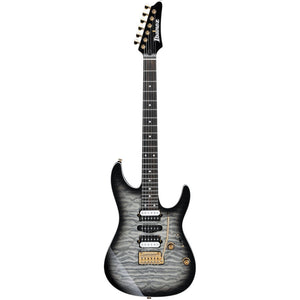

The AZ47P1QM features a quilted maple top on an American basswood body bolted to an S-Tech roasted maple Oval C shaped neck with a compound radius ebony fingerboard with 24 stainless steel frets, mother of pearl dot position markers and luminescent side dots. Components include a pair of DiMarzio humbucking pickups flanking a single-coil, a Gotoh T1502 tremolo bridge made by Gotoh, a Graph Tech nut, an angled output jack and Gotoh® MG-T locking tuning machines.
Model: AZ47P1QM-BIB
SPECIFICATIONS
| neck type |
AZ Oval C/Roasted Maple neck |
| top/back/body |
Quilted Maple top/American Basswood body |
| fretboard |
Ebony fretboard/Mother of Pearl dot inlay |
| fret |
Jumbo Stainless Steel frets |
| number of frets |
24 |
| bridge |
Gotoh® T1502 bridge |
| string space |
10.5mm |
| neck pickup |
DiMarzio® Air Norton™ (H) neck pickup Passive/Alnico |
| middle pickup |
DiMarzio® True Velvet™ (S) middle pickup Passive/Alnico |
| bridge pickup |
DiMarzio® The Tone Zone® (H) bridge pickup Passive/Alnico |
| factory tuning |
1E,2B,3G,4D,5A,6E |
| strings |
D'Addario® EXL110 |
| string gauge |
.010/.013/.017/.026/.036/.046 |
| nut |
Graph Tech® nut |
| hardware color |
Gold |
