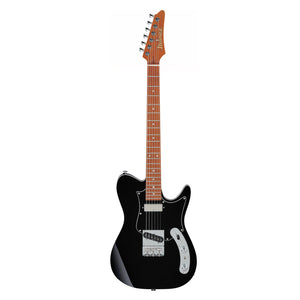

The AZS2209B features an ash body bolted to an S-Tech roasted maple neck with an S-Tech roasted maple fingerboard with 22 stainless steel frets, black dot position markers, and Luminlay side dots. Components include a Gotoh F1803 fixed bridge with In-Tune saddles, a pair of Seymour Duncan pickups with a Tele-style Alnico II Pro single coil mounted askew in a metal plate at the bridge and a Magic Touch mini-humbucker at the neck, a cream pickguard, a bone nut, and locking Gotoh tuning machines with height-adjustable posts.
Model: AZS2209B-BK
SPECIFICATIONS
| neck type |
AZ Oval CS-TECH WOOD Roasted Maple neck |
| top/back/body |
Ash body |
| fretboard |
S-TECH WOOD Roasted Maple fretboard/Abalone dot inlay |
| fret |
Jumbo Stainless Steel frets/Prestige fret edge treatment |
| number of frets |
22 |
| bridge |
Gotoh® F1803 bridge |
| string space |
10.5mm |
| neck pickup |
Seymour Duncan® Magic Touch-mini™ (H) neck pickup Passive/Alnico |
| bridge pickup |
Seymour Duncan® Alnico II Pro™ Custom (S) bridge pickup Passive/Alnico |
| factory tuning |
1E,2B,3G,4D,5A,6E |
| strings |
D'Addario® EXL110 |
| string gauge |
.010/.013/.017/.026/.036/.046 |
| nut |
Bone nut |
| hardware color |
Chrome |
