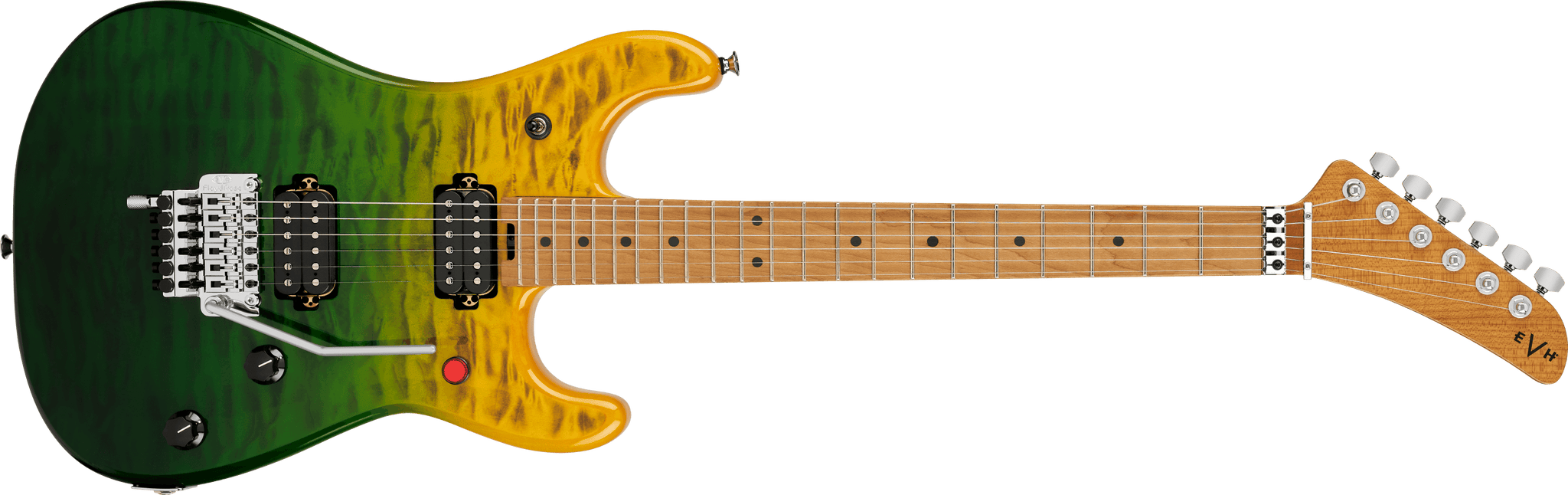

[PREORDER] EVH 5150 Series Deluxe QM Electric Guitar, Baked Maple FB, Limeade Zest

Product Description

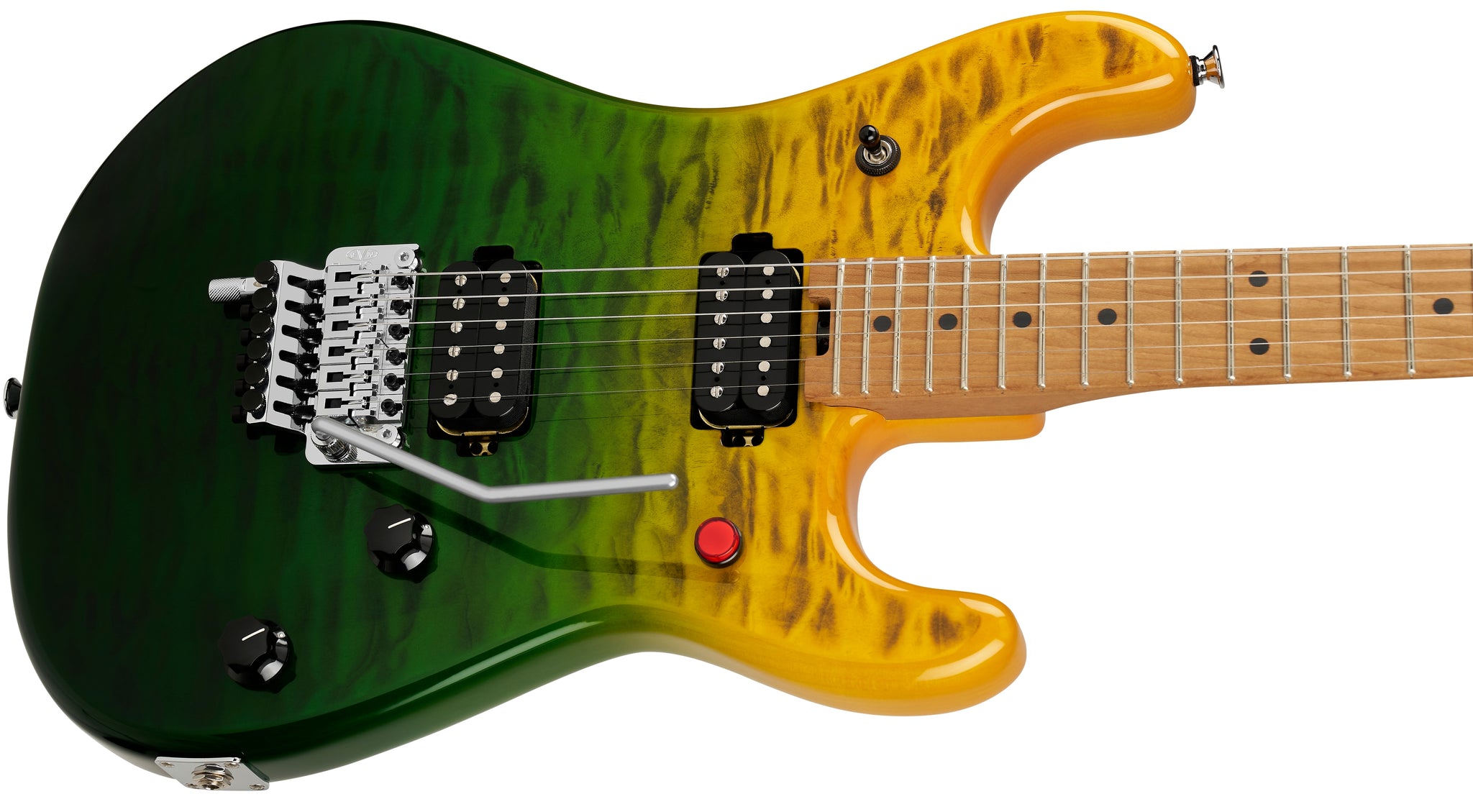

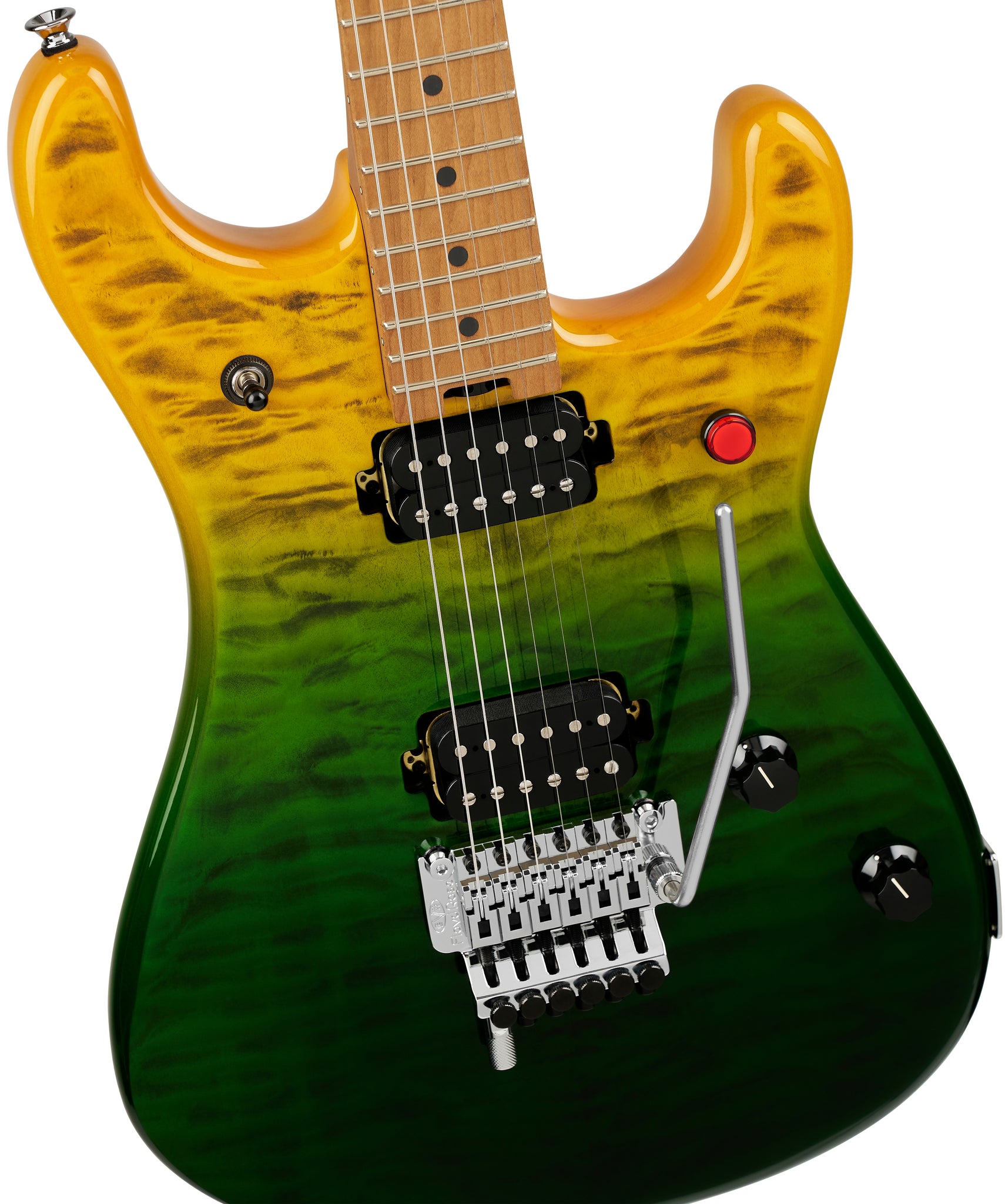

The EVH 5150® Series DX is a high-performance electric guitar engineered for players who demand speed, precision and unmistakable EVH attitude. Blending classic styling with modern upgrades, this reimagined 5150 features a basswood body with a quilt maple top, dual EVH Wolfgang® humbuckers, a Floyd Rose® tremolo with D-Tuna® and a built-in kill switch for expressive modern performance. Designed to deliver exceptional playability and signature EVH tone, it is equally at home on stage, in the studio or anywhere serious guitarists push their limits.

Built for Speed and Comfort

The modified 5150 body features a lightweight basswood construction with a beautifully figured quilt maple top and a deeper upper body contour for enhanced playing comfort. A bolt-on quartersawn baked maple neck reinforced with graphite rods provides outstanding strength and stability, while the hand-rubbed satin finish and EVH Modified "C" profile create an exceptionally smooth playing experience. The baked maple fingerboard features a 12"-16" compound radius and 22 jumbo frets, allowing effortless rhythm work, wide bends and lightning-fast lead playing.

Signature EVH Wolfgang® Tone

A pair of direct-mount EVH Wolfgang® humbuckers delivers the powerful sound that has become synonymous with the EVH name. The bridge pickup produces punchy lows, articulate mids and endless sustain, while the neck pickup delivers thick overdrive, fluid lead tones and impressive clean articulation. A three-position toggle switch, low-friction volume control with treble bleed circuit and high-friction tone control provide intuitive and precise tonal control.

Floyd Rose® Performance with Kill Switch

The EVH-branded top-mount Floyd Rose® locking tremolo with EVH D-Tuna® gives you exceptional tuning stability while allowing instant switching between standard tuning and Drop D. A dedicated kill switch expands your creative possibilities, making rhythmic stutter effects and aggressive performance techniques quick and effortless.

Stage-Ready Design

Finished in vibrant Limeade Zest, the EVH 5150® Series DX combines premium tonewoods, signature electronics and road-ready hardware into a professional-grade instrument. An included EVH Wolfgang® / Striped Series gig bag provides reliable protection for transport and storage.

Features

• Quilt Maple Top on Basswood Body: Combines lightweight comfort with balanced resonance, excellent sustain and a striking figured appearance.
• Quartersawn Baked Maple Neck with Graphite Reinforcement: Provides exceptional stability, smooth playability and long-term durability under demanding playing conditions.
• Direct-Mount EVH Wolfgang® Humbuckers: Deliver powerful output with tight lows, articulate mids and singing sustain for everything from heavy rhythm work to expressive lead playing.
• EVH Floyd Rose® Locking Tremolo with D-Tuna®: Offers outstanding tuning stability, expressive tremolo performance and instant Drop D tuning capability.
• Integrated Kill Switch: Enables rapid stutter effects and rhythmic performance techniques, adding another level of creative expression.

Specifications

Body

• Model Number: 5108310390
• Series: 5150® Series Guitars
• Body Shape: 5150™
• Body Material: Basswood
• Body Top: Quilt Maple
• Body Finish: Gloss Urethane
• Colour: Limeade Zest

Neck

• Neck Material: Quartersawn Baked Maple

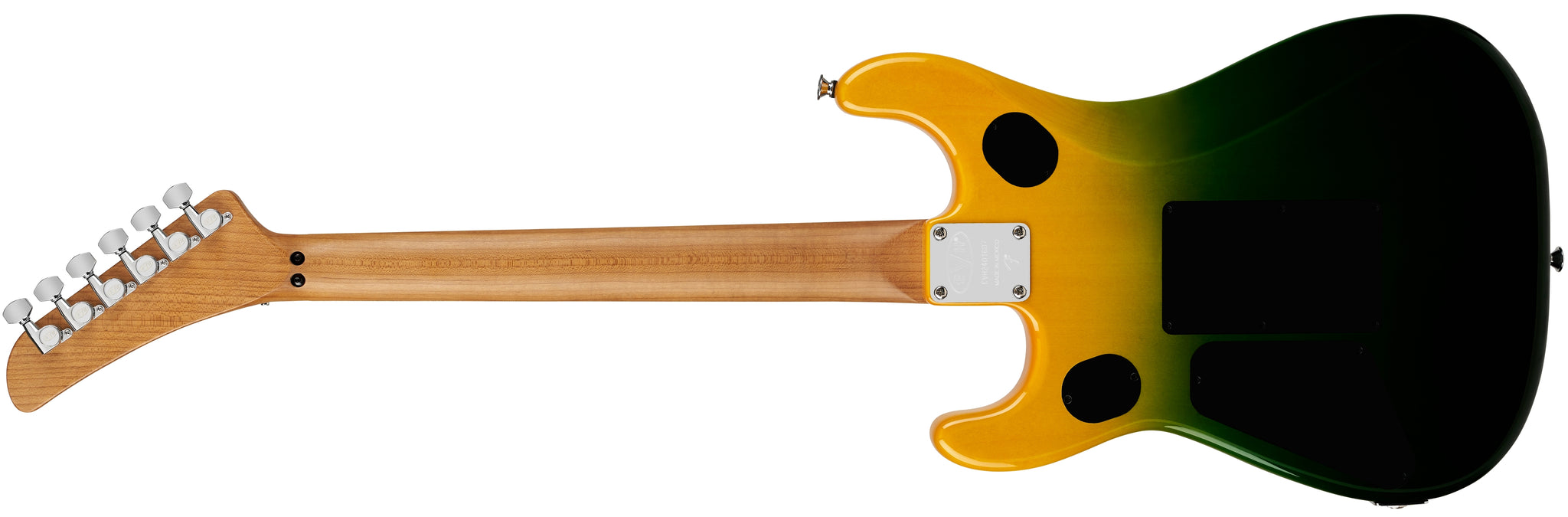

• Neck Construction: Bolt-On with Graphite Reinforcement
• Neck Shape: EVH® Modified "C" Backshape
• Neck Finish: Hand-Rubbed Satin Urethane
• Neck Thickness: .790" at 3rd Fret, .810" at 12th Fret
• Fingerboard Material: Baked Maple
• Fingerboard Radius: 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
• Number of Frets: 22
• Fret Size: Jumbo
• Nut Material: Floyd Rose® R3 Locking
• Nut Width: 1.685" (42.8 mm)
• Scale Length: 25.5" (648 mm)
• Position Inlays: Black Dot
• Side Dots: Black
• Truss Rod Adjustment: Heel-Mount Truss Rod Adjustment Wheel
• String Retainer: Floyd Rose® Retainer Bar

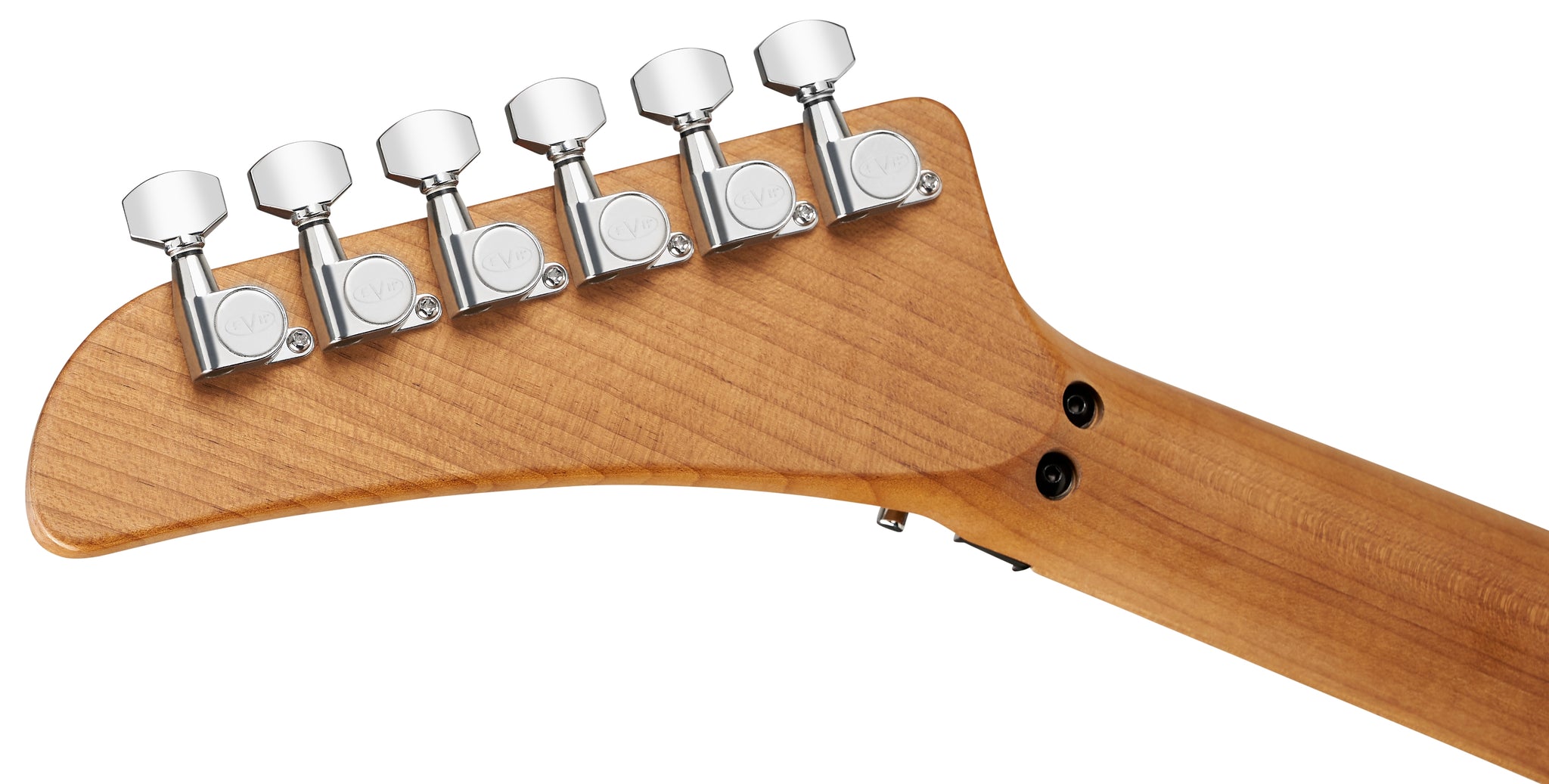

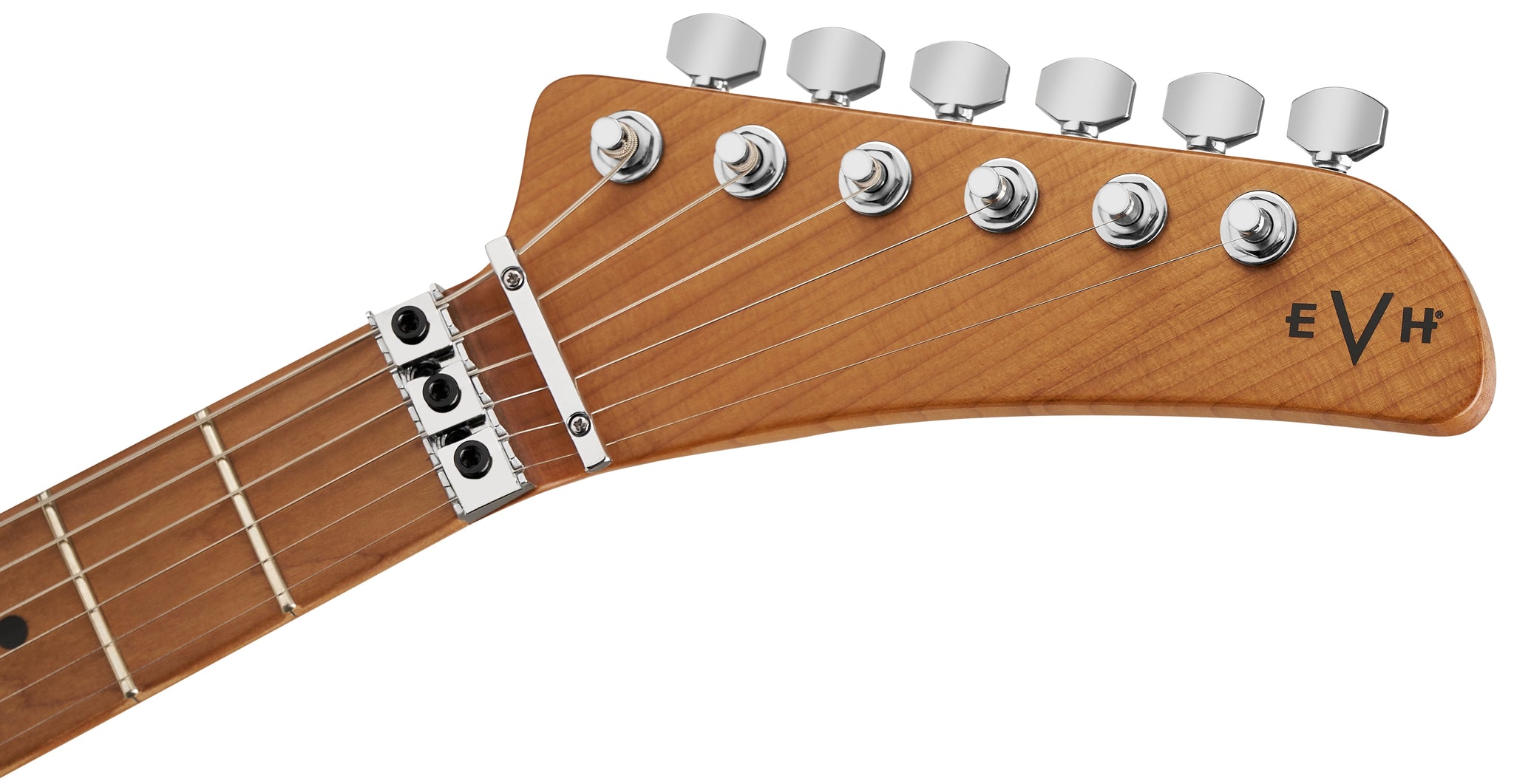

• Headstock: EVH® Hockey Stick

Hardware

• Bridge: EVH® Branded Top-Mount Floyd Rose® Locking Tremolo with EVH D-Tuna®
• Neck Plate: Standard 4-Bolt

Electronics

• Pickup Configuration: HH
• Bridge Pickup: Direct-Mount EVH® Wolfgang® Humbucking
• Neck Pickup: Direct-Mount EVH® Wolfgang® Humbucking
• Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
• Pickup Switching: 3-Position Toggle Switch
• Auxiliary Switching: Kill Switch

Miscellaneous

• Number of Strings: 6
• Orientation: Right-Handed
• Included Case/Gig Bag: EVH® Wolfgang® / Striped Series Gig Bag
